Rotary Parking

Multiplying parking space near you!
The most cost-effective, energy-efficient, and eco-friendly parking systems that increase parking capacity up to 8 times compared to traditional parking lots.

maximum space saving
modular construction and the ability to quickly add new capacities
possible relocation and reinstallation
suitable for all types of vehicles – sedans, station wagons, and SUVs
protection of vehicles against theft, damage and weather conditions
quiet operation – low noise levels in comparison to any other type of parking system
systems constructed as standalone structures, minimizing the risk of flooding
low power consumption
easy to operate
low running costs
high endurance
long lifetime.

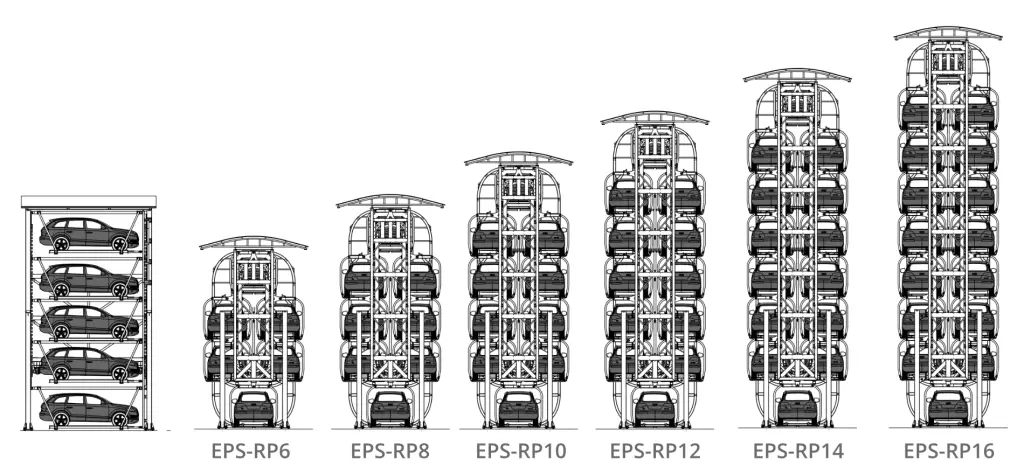

Model		EPS – RP06	EPS – RP08	EPS – RP10	EPS – RP12	EPS – RP14	EPS – RP16
Parking capacity		6 vehicles	8 vehicles	10 vehicles	12 vehicles	14 vehicles	16 vehicles
System dimensions	Length	6450 mm	6450 mm	6450 mm	6450 mm	At request*	At request*
	Width	5420 mm	5420 mm	5420 mm	5420 mm	At request*	At request*
	Height	9315 mm	11450 mm	13585 mm	15720 mm	At request*	At request*
Parked vehicles maximum dimensions	Length	5300 mm	5300 mm	5300 mm	5300 mm	At request*	At request*
	Width	2250 mm	2250 mm	2250 mm	2250 mm	At request*	At request*
	Height	1950 mm	1950 mm	1950 mm	1950 mm	At request*	At request*
	Weight	2500 kg	2500 kg	2500 kg	2500 kg	At request*	At request*
Geared Motor		7,5 kW	9,2 kW	9,2 kW	11 kW	At request*	At request*
Motor control		Inverter	Inverter	Inverter	Inverter	Inverter	Inverter
Speed		5 – 5,5 m/min	5 – 5,5 m/min	5 – 5,5 m/min	5 – 5,5 m/min	5 – 5,5 m/min	5 – 5,5 m/min
Noise		65 dB – 75 dB	65 dB – 75 dB	65 dB – 75 dB	65 dB – 75 dB	65 dB – 75 dB	65 dB – 75 dB

* EPS-RP14 and EPS-RP16 specifications are defined per individual project request
